Our system for briquetting has briquette press wich works in combination with mill. Role of the mill is to cut biomass and prepare it for use in briquetting process. Prepared biomass is pneumatically transporting into mixer, and then from mixer it is transporting and dosed by the screw conveyor during briquetting process. Due to the pressure created into the press, and friction force also, it is coming up to warming up biomass wich is further try the process drying and compressing into briquett without adding any glue or additive. Briquette production line is very easy for handling and one person can control and serve the maschine.

It contains:

2x 2xBriquette press BioBriket 150 MANUAL
Hammer mill TIP 300
Transport line for straw input TIP 4000

Dimensions of the complete line:
Lenght:10000mm
Height:4500mm
Width:5700mm
Weight:3600kg

Installed power: 50 kW

Cena:  35000 EUR

BONUS: For each bought machine with us, you get free delivery, installation, commissioning and training by an expert.

This product has a CE certificate for export to EU countries.

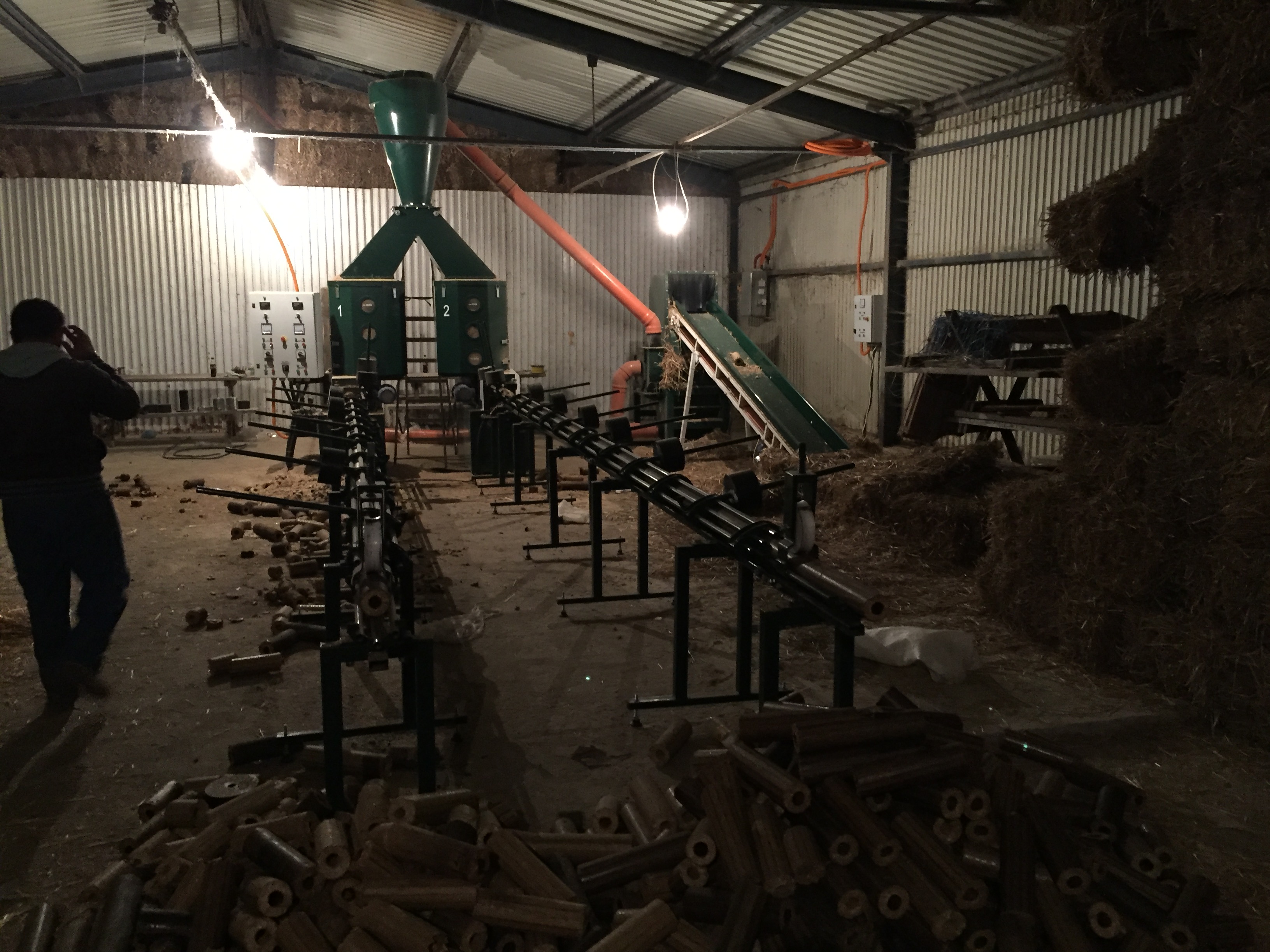

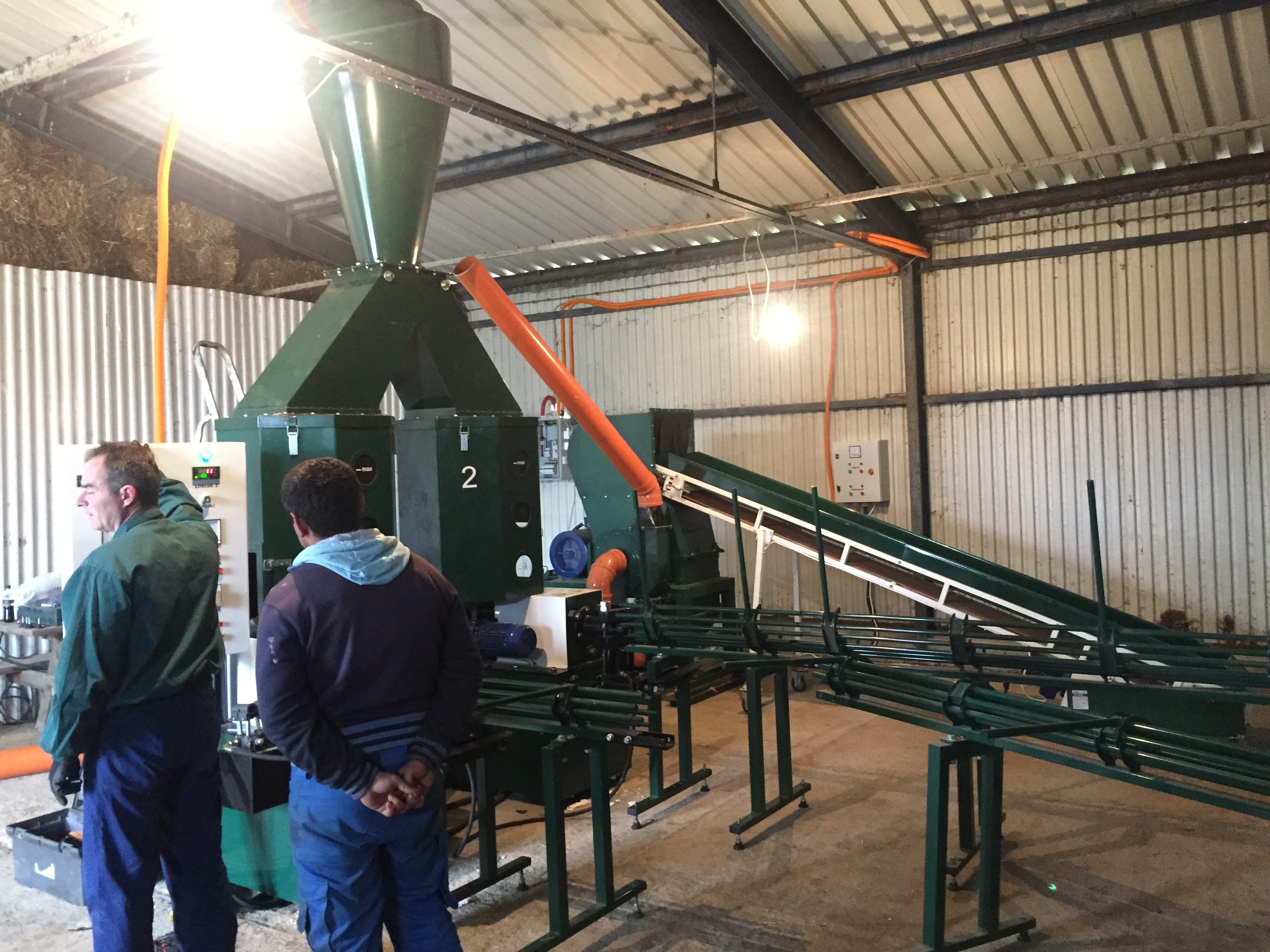

Mounting of the Briquette Production Line 300kg/h in Novo Brdo, Kosovo
